Hyundai Tucson: Rear combination light bulb replacement / Inside light

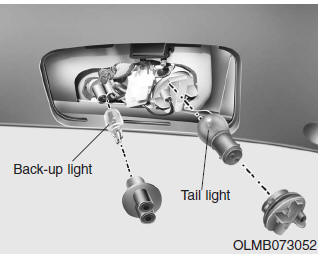

Tail light and Back-up light

1. Open the tailgate.

2. Remove the service cover using a flat-blade screwdriver.

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Tail light: Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

Back-up light: Remove the bulb from the socket by pulling it out.

5. Insert a new bulb into the socket.

6. Install the socket into the assembly by aligning the tabs on the socket with the slots on the assembly and turning the socket clockwise.

7. Reinstall the light assembly to the body of the vehicle

Outside light
Turn signal light and stop/tail light 1. Open the tailgate. 2. Loosen the lamp assembly retaining screws with a cross-tip screwdriver. 3. Remove the rear combination lamp assembly from the body o ...

High mounted stop light
1. Open the tailgate. 2. Gently remove the center cover of the rear tailgate trim. 3. Disconnect the electrical connector. 4. Loosen the retaining nuts and remove the spoiler. 5. Remove the hi ...
