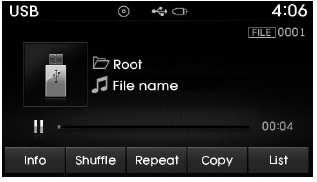

Playing/Pausing USB Files
Once a USB is connected, the mode will automatically start and begin playing a USB file.
While playing, press the button
to pause and press
button to play.
✽ NOTICE
Changing Files
Press the keys to move to the previous
or next file.
✽ NOTICE
Selecting from the List
Turn the TUNE knob left/right to
search for the desired file.
Once you find the desired file, press the
TUNE knob to start playing.
Rewinding / Fast-forwarding Files
While playing, press and hold the
key (over 0.8 seconds) to rewind or
fast-forward the current file.
Scan
Press the key to play the first
10 seconds of each file.
Searching Folders
Press the key to select and
search folders.
Once the desired folder is displayed, press the
TUNE knob to select.
The first file within the selected folder will begin playing.
