Hyundai Tucson: Starting System / Starter Components and Components Location
Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Electrical System / Starting System / Starter Components and Components Location
| Components |

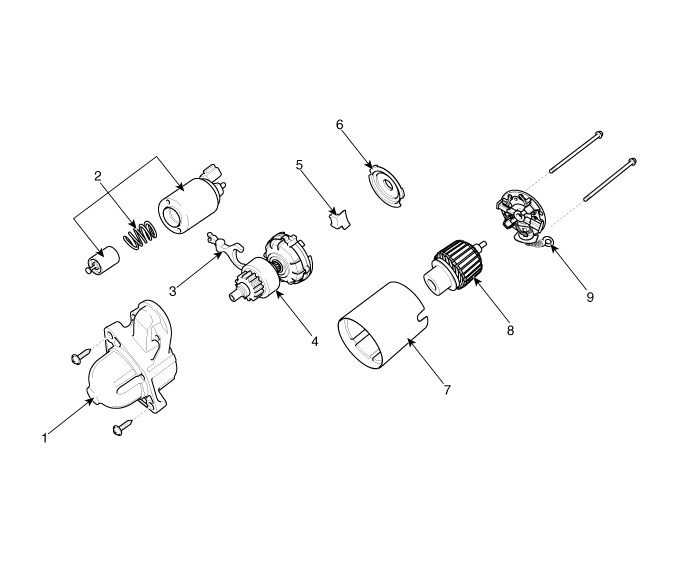

| 1. Front bracket assembly 2. Magnet switch assembly 3. Lever 4. Reducer assembly 5. Lever stop | 6. Gasket sheet 7. Yoke assembly 8. Armature assembly 9. Brush holder assembly |
Starter Specifications
Specification
ItemSpecificationRated voltage12 V, 1.2 kWThe number of pinion teeth13Performance[No-load, 11 V]AmpereMax. 70 ASpeedMin. 2,400 rpm
...
Starter Schematic Diagrams
Circuit Diagram
...
