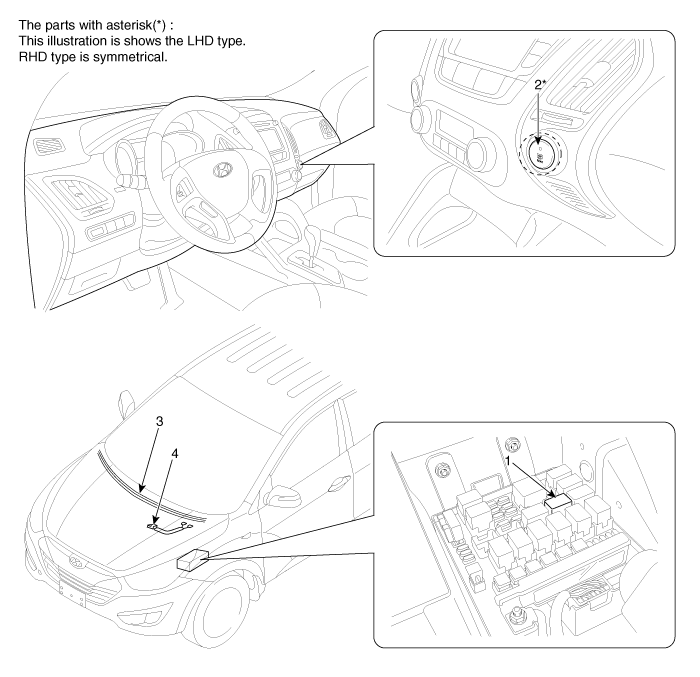

Component Location

x	Button start type : Front windshield deicer, Rear glass defogger and outside mirror heater functions are joined together one switch.
x	General key type : Front windshield deicer switch is located in left air vent separately.

1. Windshield deicer relay
2. Windshield deicer switch

3. Windshield deicer
4. Deicer connector

Description and Operation

Description Windshield deicer system prevent windshield wiper from freezing in the winter season. It consists of deicer in the lower part of windshield, switch and relay. Body control module re ...
