Hyundai Tucson: Power Windows / Troubleshooting
| Troubleshooting |

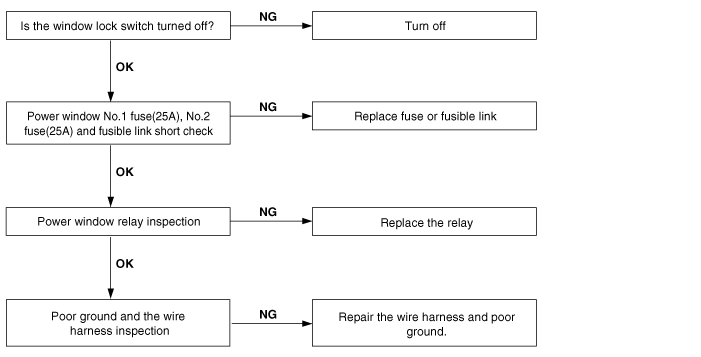

| 1. |
No windows operate from the main switch on the driver's door.
|
| 2. |
Driver's side window does not operate.
|

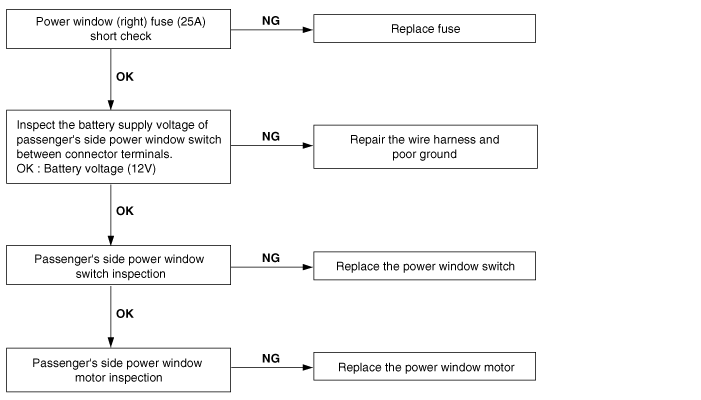

| 3. |
Passenger's side window does not operate.
|
Power Window Switch Repair procedures
Inspection
Main Power Window Switch Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim and power window switch.
(Refer to the BD group - "Front door") ...
