Hyundai Tucson: Automatic Transaxle Control System / Transaxle Control Module (TCM) Schematic Diagrams
Hyundai Tucson (LM) 2010-2015 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Control Module (TCM) Schematic Diagrams

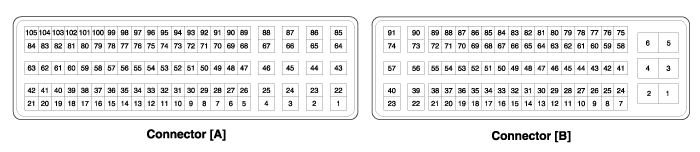

| 1. TCM Connector and Terminal Function |
| 2. TCM Terminal Function |
Connector [A]
| Pin | Description | Pin | Description |
| 1 | - | 54 | - |
| 2 | - | 55 | - |
| 3 | - | 56 | - |
| 4 | - | 57 | - |
| 5 | - | 58 | Sport mode down switch |
| 6 | - | 59 | Oil temperature sensor (+) |
| 7 | - | 60 | - |
| 8 | - | 61 | - |
| 9 | - | 62 | - |
| 10 | - | 63 | - |
| 11 | - | 64 | - |
| 12 | - | 65 | - |
| 13 | - | 66 | - |
| 14 | - | 67 | - |
| 15 | - | 68 | - |
| 16 | - | 69 | - |
| 17 | - | 70 | - |
| 18 | - | 71 | - |
| 19 | - | 72 | - |
| 20 | - | 73 | Inhibitor switch signal "S4" |
| 21 | - | 74 | Inhibitor switch signal "S2" |
| 22 | Overdrive clutch control solenoid valve | 75 | Inhibitor switch signal "S3" |
| 23 | Line pressure control solenoid valve | 76 | - |
| 24 | - | 77 | - |
| 25 | - | 78 | - |
| 26 | ON/OFF solenoid valve B(SS-B) | 79 | - |
| 27 | - | 80 | - |
| 28 | - | 81 | - |
| 29 | - | 82 | - |
| 30 | - | 83 | - |
| 31 | - | 84 | - |
| 32 | - | 85 | - |
| 33 | - | 86 | - |
| 34 | - | 87 | Solenoid supply power 2 |
| 35 | - | 88 | Solenoid supply power 1 |
| 36 | - | 89 | ON/OFF solenoid valve A(SS-A) |
| 37 | Sport mode up switch | 90 | - |
| 38 | Sport mode select switch | 91 | - |
| 39 | Oil temperature sensor(-) | 92 | - |
| 40 | - | 93 | - |
| 41 | - | 94 | Inhibitor switch signal "S1" |
| 42 | - | 95 | Output speed sensor power |
| 43 | Underdrive brake control solenoid valve | 96 | Input speed sensor power |
| 44 | 35R clutch control solenoid valve | 97 | - |
| 45 | Torque converter control solenoid valve | 98 | - |
| 46 | 26 brake control solenoid valve | 99 | Input speed sensor signal |
| 47 | - | 100 | Output speed sensor signal |
| 48 | - | 101 | - |
| 49 | - | 102 | - |
| 50 | - | 103 | - |
| 51 | - | 104 | - |
| 52 | - | 105 | - |
| 53 | - | x | x |
Connector [B]
| Pin | Description | Pin | Description |
| 1 | Ground (Power) | 47 | - |
| 2 | Ground (Power) | 48 | - |
| 3 | Battery power (B+) | 49 | - |
| 4 | Ground (Power) | 50 | - |
| 5 | Battery power (B+) | 51 | - |
| 6 | - | 52 | - |
| 7 | - | 53 | - |
| 8 | - | 54 | - |
| 9 | - | 55 | - |
| 10 | - | 56 | - |
| 11 | - | 57 | - |
| 12 | - | 58 | - |
| 13 | - | 59 | - |
| 14 | - | 60 | - |
| 15 | - | 61 | - |
| 16 | - | 62 | - |
| 17 | - | 63 | - |
| 18 | - | 64 | - |
| 19 | - | 65 | - |
| 20 | - | 66 | - |
| 21 | - | 67 | Ignition switch |
| 22 | - | 68 | - |
| 23 | - | 69 | - |
| 24 | - | 70 | - |
| 25 | - | 71 | Start relay control |
| 26 | - | 72 | - |
| 27 | - | 73 | - |
| 28 | - | 74 | - |
| 29 | - | 75 | - |
| 30 | - | 76 | - |
| 31 | - | 77 | CAN (High) |
| 32 | - | 78 | CAN (LOW) |
| 33 | - | 79 | - |
| 34 | - | 80 | - |
| 35 | - | 81 | - |
| 36 | - | 82 | - |
| 37 | - | 83 | - |
| 38 | - | 84 | - |
| 39 | - | 85 | - |
| 40 | - | 86 | - |
| 41 | - | 87 | - |
| 42 | - | 88 | - |
| 43 | - | 89 | - |
| 44 | - | 90 | - |
| 45 | - | 91 | - |
| 46 | - | x | x |
| TCM Terminal Input/ Output Signal |
Connector [A]
| Pin | Description | Condition | Input/output value | |
| Type | Level | |||
| 22 | Overdrive clutch control solenoid valve (OD/C_VFS) | x x x | Output | 0V/Battery voltage level |
| 9V < Battery voltage level < 16V | ||||
| Power supply : V_SOL1 | ||||
| 23 | Line pressure control solenoid valve (LINE_VFS) | x | Output | 0V/Battery voltage level |
| 9V < Battery voltage level < 16V | ||||
| 26 | ON/OFF solenoid valve B(SS-B) | High | Output | 0V/Battery voltage level |
| Low | 9V < Battery voltage level < 16V | |||
| 37 | Sports mode up switch | Up ON | Input | 0V/Battery voltage level |
| Other | 9V < Battery voltage level < 16V | |||
| 38 | Sports mode select switch | Sport mode | Input | 0V/Battery voltage level |
| Other | 9V < Battery voltage level < 16V | |||
| 39 | Oil temperature sensor (-) | x | Ground | 0V |
| 43 | Underdrive brake control solenoid valve (UD/B_VFS) x | x | Output | 0V/Battery voltage level |
| 9V < Battery voltage level < 16V | ||||
| Power supply : V_SOL2 | ||||
| 44 | 35R clutch control solenoid valve (35R/C_VFS) | x | Output | 0V/Battery voltage level |
| 9V < Battery voltage level < 16V | ||||
| 45 | Torque converter control solenoid valve (T/CON_VFS) | x | Output | 0V/Battery voltage level |
| 9V < Battery voltage level < 16V | ||||
| 46 | 26 brake control solenoid valve (26/B_VFS) | x | Output | 0V/Battery voltage level |
| 9V < Battery voltage level < 16V | ||||
| Power supply : V_SOL2 | ||||
| 58 | Sports mode down switch | Down ON | Input | 0V/Battery voltage level |
| Other | 9V < Battery voltage level < 16V | |||
| 59 | Oil temperature sensor (+) | ON | Input | 0V/3.3V |
| OFF | ||||
| 73 | Inhibitor switch signal "S4" | High | Input | 0V/Battery voltage level |
| Low | 9V < Battery voltage level < 16V | |||
| 74 | Inhibitor switch signal "S2" | High | Input | 0V/Battery voltage level |
| Low | 9V < Battery voltage level < 16V | |||
| 75 | Inhibitor switch signal "S3" | High | Input | 0V/Battery voltage level |
| Low | 9V < Battery voltage level < 16V | |||
| 89 | ON/OFF solenoid valve A (SS-A) | High | Output | 0V/Battery voltage level |
| Low | 9V < Battery voltage level < 16V | |||
| 94 | Inhibitor switch signal "S1" | High | Input | 0V/Battery voltage level |
| Low | 9V < Battery voltage level < 16V | |||
| 95 | Output speed sensor power | ON | Power | 0V/7.5V |
| OFF | ||||
| 96 | Input speed sensor power | ON | Power | 0V/7.5V |
| OFF | ||||
| 99 | Input speed sensor signal | High | Input | 0.7V/1.4V |
| x | ||||
| 100 | Output speed sensor signal | High | Input | 0.7V/1.4V |
| Low | ||||
Connector [B]
| Pin | Description | Condition | Input/output value | |
| Type | Level | |||
| 1 | Ground (Power 1) | x | Ground | 0V |
| 2 | Ground (Power 2) | x | Ground | 0V |
| 3 | Battery power (B+) | ON | Power | 0V/Battery voltage level |
| OFF | 9V < Battery voltage level < 16V | |||
| 4 | Ground (Power 2) | x | Ground | 0V |
| 5 | Battery power (B+) | ON | Power | 0V/Battery voltage level |
| OFF | 9V < Battery voltage level < 16V | |||

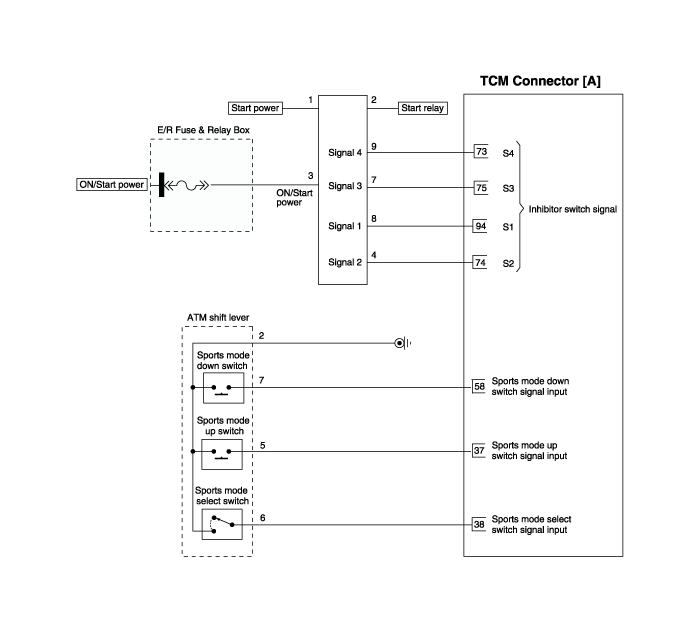

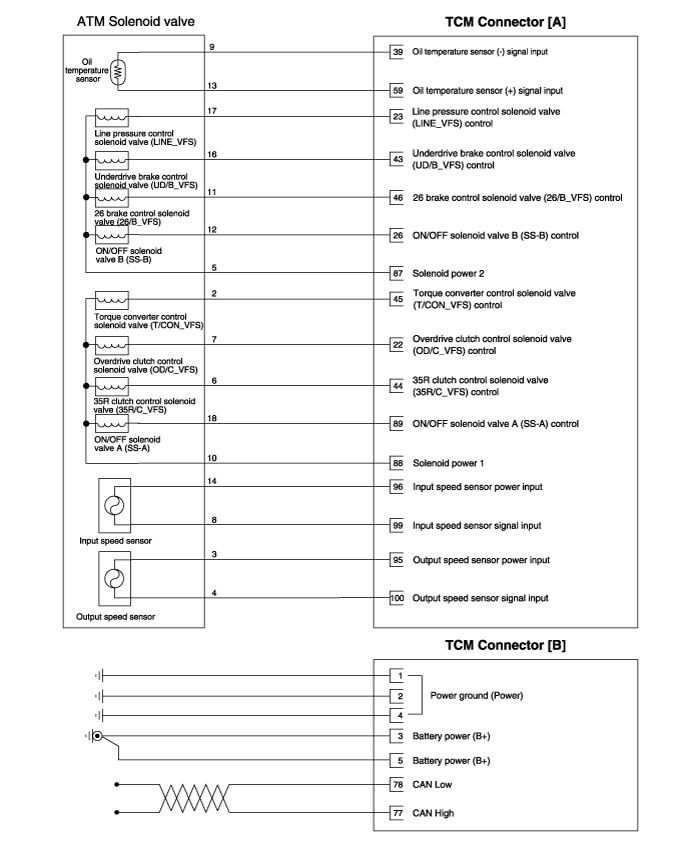

| Circuit Diagram |
