Hyundai Tucson: Panoramic sunroof / Sunroof open warming
If the driver removes the ignition key (Smart key : turns off the engine) and opens the driver’s side door when the sunroof is not fully closed, the warning chime will sound for approximately 7 seconds and

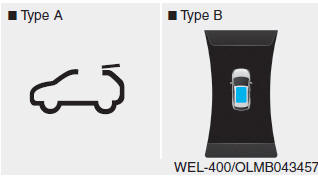

Type A :
Sunroof Open Warning Light will illuminate or blink for approximately 7 seconds.
Type B :
Sunroof Open image will appear on the LCD display. Close the sunroof securely when leaving your vehicle.
Tilting the Sunroof
Open the roller blind before opening and closing the sunroof.
To tilt the sunroof open:
Push the sunroof control lever upward until the sunroof moves to the desired
position.
To close the sun ...
Roller blind
Open and close the roller blind manually using the handle (1).
Always open the roller blind before opening or closing the sunroof.
CAUTION
Use the handle when opening and closing the roller bli ...
