Hyundai Tucson: Operating door locks from outside the vehicle / Smart key

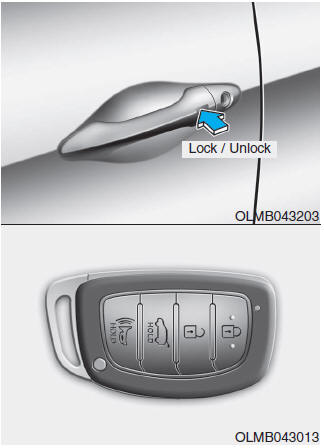

To lock the doors, press the button on the outside door handle while carrying the smart key with you or press the door lock button on the smart key.

Press the button on the outside door handle while carrying the smart key with you or press the door unlock button on the smart key, the driver’s door will unlock. If you press the Door Unlock button on the smart key again within four seconds, then all the doors will unlock.

Once the doors are unlocked, they may be opened by pulling the door handle.

When closing the door, push the door by hand. Make sure that doors are closed securely.

✽ NOTICE

You can change the system to the central door unlock mode (unlock all the doors when you press the unlock button one time). If you want this feature, perform the following: Unlock mode conversion (two stage unlock mode ↔ central door unlock mode)

The unlock mode changes alternately by pressing the lock button and unlock button on the smart key at the same time for 4 seconds or more. The hazard warning lights will blink four times to indicate that the mode conversion is completed.

✽ NOTICE

Remote key
To lock the doors, press the Door Lock button (1) on the remote key. Press the Door Unlock button (2) on the remote key, the driver’s door will unlock. If you press the Door Unlock button on ...

Operating door locks from inside the vehicle
With the door lock button: To unlock a door, push the door lock button (1) to the “Unlock” position. The red mark (2) on the door lock button will be visible. To lock a door, push the d ...
