Hyundai Tucson: Evaporative Emission Control System / Repair procedures

Inspection
[EVAP. Leakage Test]
1.

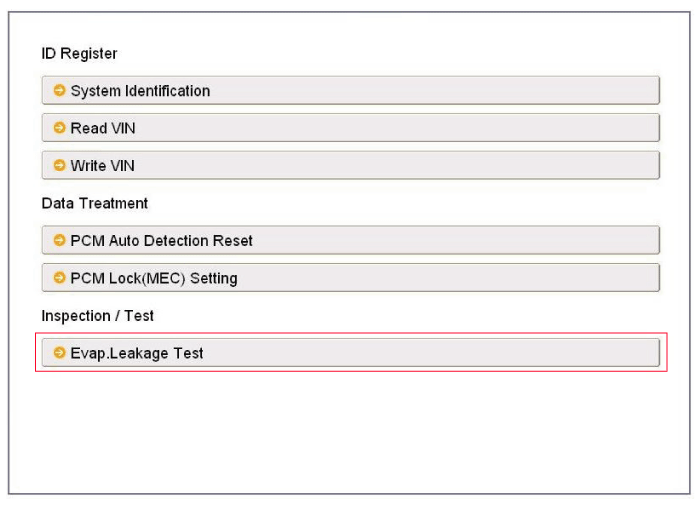

Select "Evap. Leakage Test".

2.

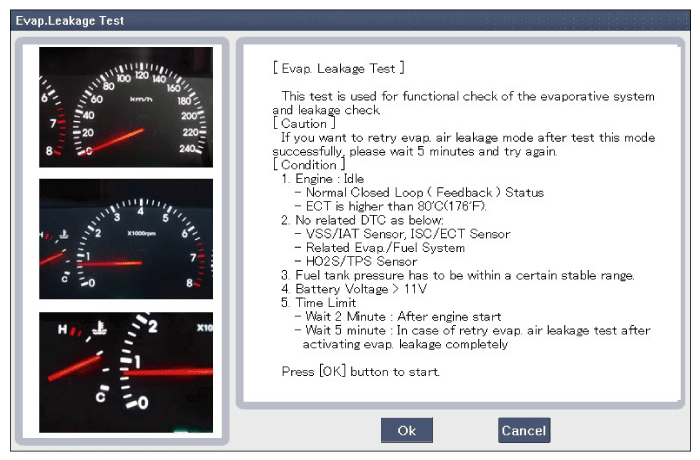

Proceed with the test according to the screen introductions.

Components and Components Location
Components Location 1. Purge Control Solenoid Valve (PCSV)2. Vapor line3. ORVR valve4. Fuel tank air filter5. Canister Close Valve (CCV)6. Canister7. Fuel Tank Pressure Sensor (FTPS) ...

Canister Repair procedures
Removal 1. Remove the fuel tank. (Refer to "Fuel tank" in FL group.) 2. Disconnect the vapor tube quick-connector (A,B) and the ventilation hose (C). 3. Remove the canister in the direct ...
