Removal

Driver Power Window Switch

1.	Disconnect the negative battery terminal.

2.	Remove the front door trim. (Refer to the BD group - "Front door")

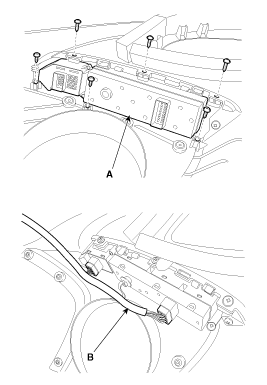

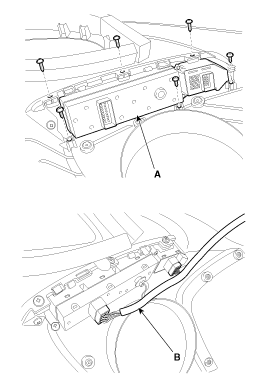

3.	Remove the screws from power window switch (A) and connectors (B). [LHD] [RHD]

Remove the driver power window switch (A) from front door trim.

[LHD]

[RHD]

Be careful not to damage the hook when removing the switch module.

Installation

Driver Power Window Switch

1.	Install the driver door module and connectors.

2.	Install the front door trim.
