Hyundai Tucson: Automatic Transaxle Control System / Output Speed Sensor Troubleshooting

Hyundai Tucson (LM) 2010-2015 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Output Speed Sensor Troubleshooting

Signal Waveform

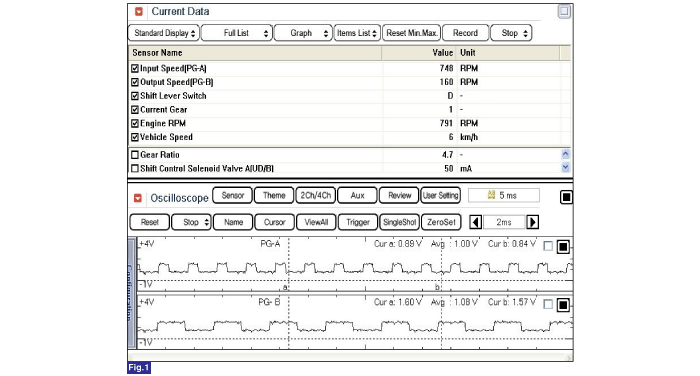

Fig 1) Input/Output speed sensor at low speed

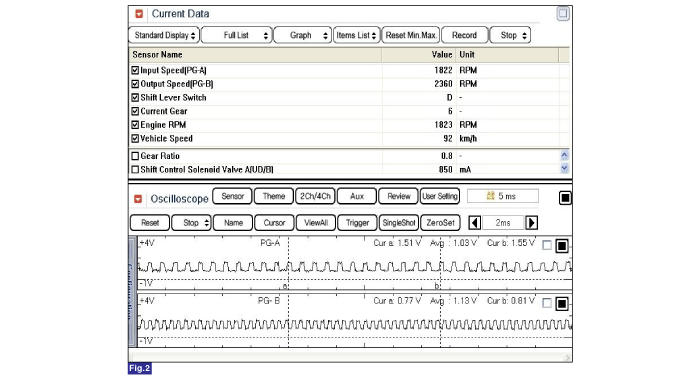

Fig 2) Input/Output speed sensor at high speed

Output Speed Sensor Schematic Diagrams

Circuit Diagram ...

Output Speed Sensor Repair procedures

Inspection 1. Check signal waveform of Input & output speed sensor using the GDS. Specification: Refer to "Signal Wave Form" section. Removal 1. Remove the valve body assembly. (R ...
