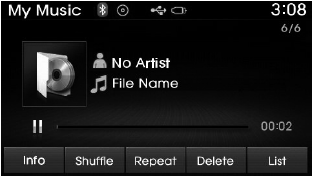

Hyundai Tucson: MY Music mode / My Music Mode Menu
Within this mode, you will have access to the Info, Random(Shuffle), Repeat, Delete and List features.
Info
Press the
button to display details
about the current file.
✽ NOTICE
The title, artist and album info are displayed only when such information is recorded within the MP3 file ID3 tag.
Random
Press the
button to play files
in random order. Press the button again to turn the Random feature off.
Repeat
Press the
button to repeat the
current song. Press the button again to turn the repeat feature off.
Deleting Files
Press the
button to delete the
current file.
List
Press the
button to display the
file list screen.
Turn the
TUNE knob left/right to
search for files. Once the desired file is displayed, press the knob to select and
play.
Using My Music Mode
Playing/Pausing My Music Files
While playing, press the
button to pause and press button to
play.
✽ NOTICE
If there are no files saved within My Music, the [My Music] button will be ...

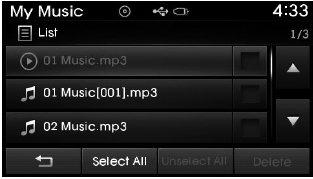

List Menu
From the List screen, it is possible to delete files you previously saved into
My Music.
Press the button or individually
select the files you want to delete. Once files are selected, th ...
