Hyundai Tucson: ESC(Electronic stability system) System / ESC Control Unit Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Brake System / ESC(Electronic stability system) System / ESC Control Unit Components and Components Location

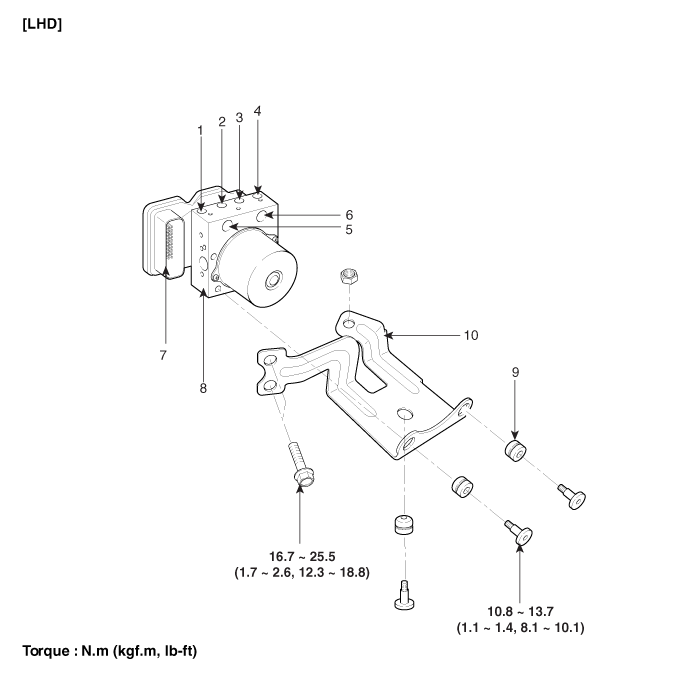

Components (1)

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2

6. MC1
7. ESC control module connector
8. ESC control module(HECU)
9. Damper
10. Bracket

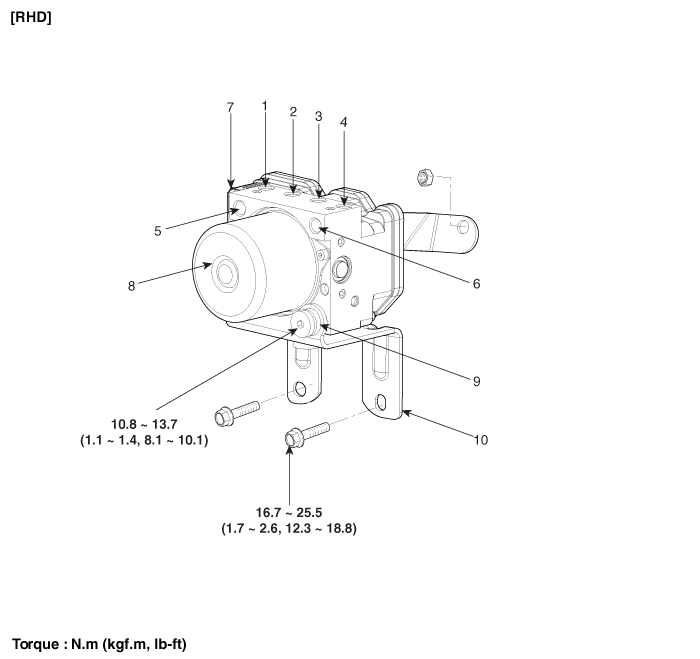

Components (2)

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2

6. MC1
7. ESC control module connector
8. ESC control module(HECU)
9. Damper
10. Bracket

Troubleshooting

Failure Diagnosis 1. In principle, ESC and TCS controls are prohibited in case of ABS failure. 2. When ESC or TCS fails, only the failed system control is prohibited. 3. However, when the ...

ESC Control Unit Repair procedures

Removal 1. Turn the ignition switch OFF. 2. Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise with a spanner. Tightening torque : ABS : 12.7 ~ 16.7N.m(1.3 ~ 1 ...
